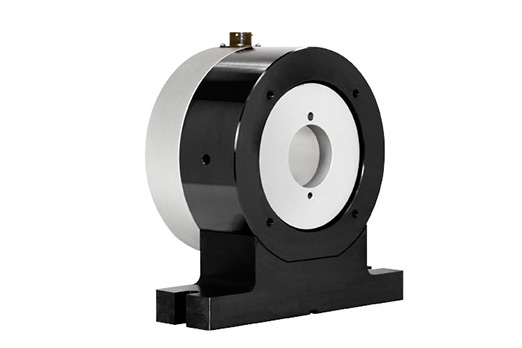

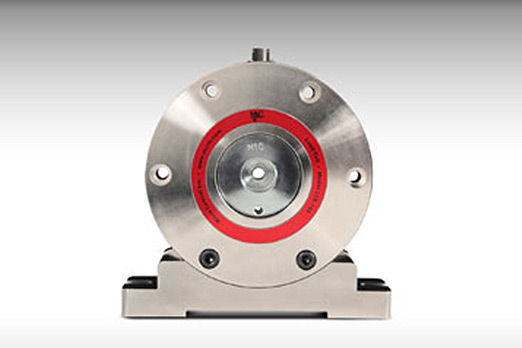

Our torque-tension cells (TTC) designed with unique strain gage configuration to measure tension and thread torque on a bolt during tightening. Using a MC950 In conjunction with input torque transducer and torque tension cell, fastener engineer can measure input torque, tension and thread torque. In turn under head, thread and total friction coefficient can be calculated. And effects of material, surface finish, plating, lubricant and coating can be evaluated. It features a large internal diameter to accommodate a wide range of bolt sizes when used with our selection of plates and bushings. Plates are recessed for square washer inserts, for simulation of the surface on the joint of interest. Our torque-tension cells are equipped with AutoID, which saves its calibration setting inside a memory chip to be ready by the MC950. TTC can also be used to calibrate ultrasonic bolts.

Overview

Capacities:
100KN Load and 150NM Torque Model TTC-100/150
300KN Load and 450NM Torque Model TTC-300/450

Plates and bushings are sold separately. A plate and bushing pair is required for each bolt size.
